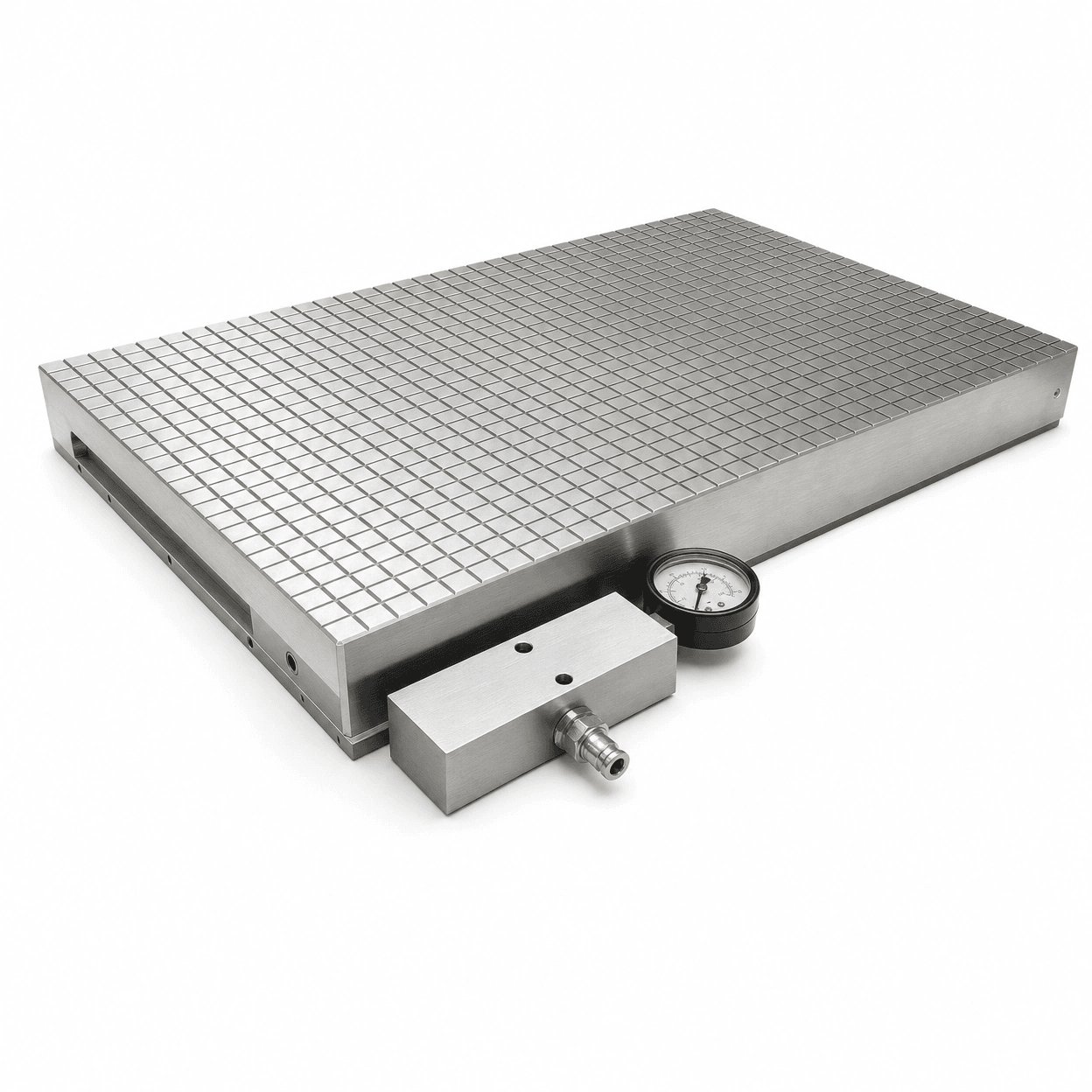

Grid type Vacuum Chuck

Grid Type Vacuum Chuck for Milling & Grinding – Type VRS

Rated 5 out of 5
UseMilling, Grinding, EDM, Turning, Engraving, Metrology
Nominal Force~1 bar (atmospheric pressure clamping)
Sealing CordØ 3 mm (12.5 mm pitch) or Ø 5 mm (25 mm pitch)
Flatness0.02 / 100 mm
Parallelism0.02 / 100 mm
Body MaterialHigh-strength aluminum

Upgrade your machining setup with the Braillon Type VRS Grid Vacuum Chuck. For detailed information, technical specifications, or to place an order, contact the Braillon USA sales team. Achieve superior flatness, zero edge distortion, and repeatable precision on every operation.

Price range: $3,600.00 through $4,200.00

SKU N/A Category

Description

Overview:

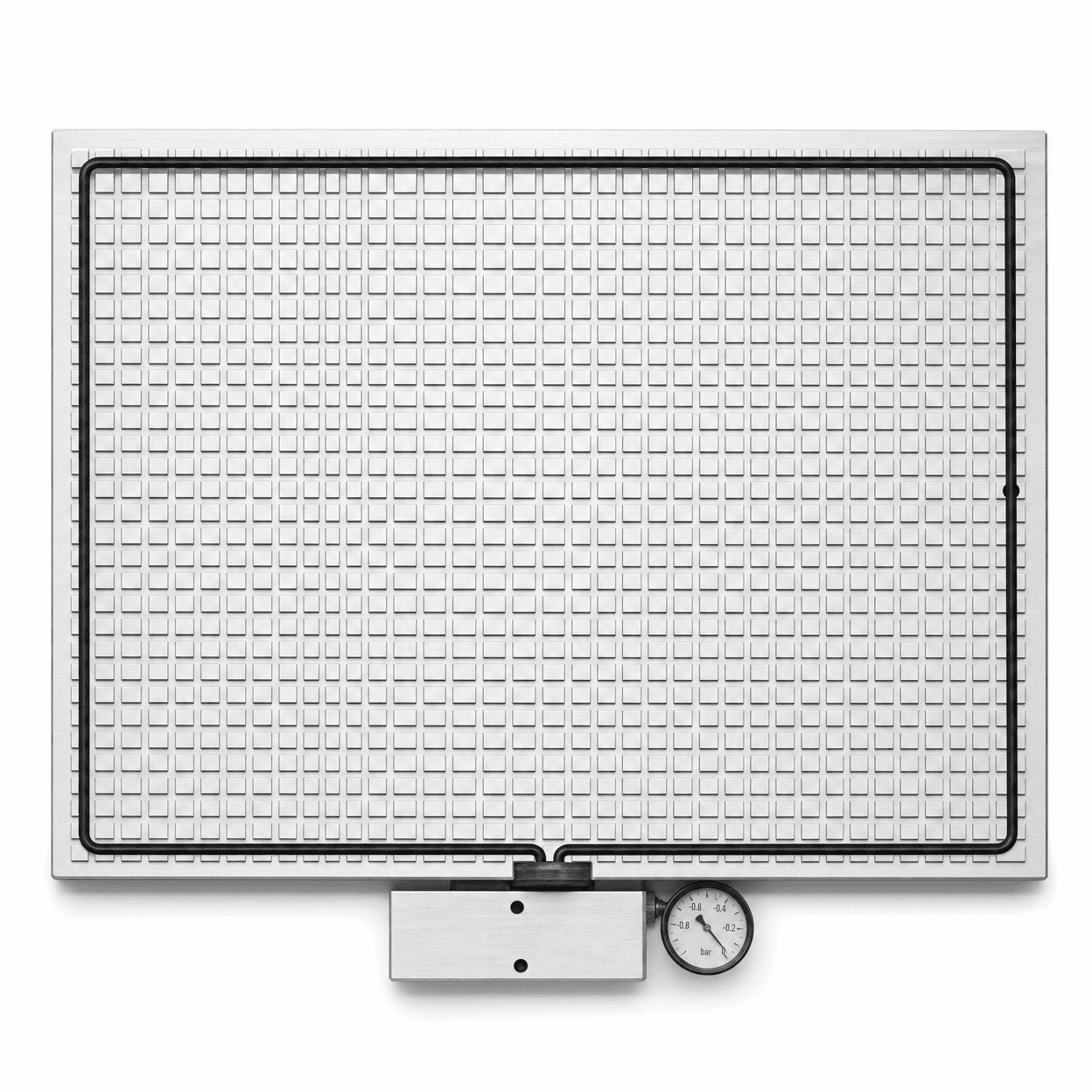

The Braillon Type VRS Grid Type Vacuum Chuck is a precision-machined aluminum workholding system designed for milling, grinding, EDM, and turning applications. A rubber sealing cord is routed through a grid of intersecting grooves to outline the perimeter of the workpiece. When connected to a vacuum pump, atmospheric pressure clamps the part firmly against the chuck surface — delivering maximum holding force with zero mechanical contact on the workpiece edges. Available in two groove pitches: 12.5 mm (Ø 3 mm cord) for complex geometries, and 25 mm (Ø 5 mm cord) for maximum clamping force on flat raw parts.
Key Features:
  • Precision Ground Surface: Flatness and parallelism of 0.02 mm per 100 mm as standard — suitable for grinding, EDM, and metrology.
  • Two Sealing Cord Options: Ø 3 mm cord for complex or irregular part outlines; Ø 5 mm cord for large flat parts requiring maximum holding force.
  • Fully Modular System: Multiple chucks can be bolted together to create a larger clamping surface for oversized workpieces or batch machining.
  • Through-Bored Machining Ready: Use with an adapter mat to perform full-depth profiling and cut-out operations without losing vacuum.
  • Dry and Wet Machining Compatible: Suitable for use with cutting fluid when paired with the VAL-SEP vacuum unit (Ref. 30.10.XX.70).
  • No Electricity at the Chuck: The clamping force is generated by vacuum — no electrical connections at the workpiece or chuck body.
  • 16 Standard Sizes in Stock: From 200×100 mm (1.8 kg) to 1000×400 mm (48 kg). Custom sizes available on request.
Applications:
Ideal for precision engineering, metalworking, aerospace, automotive, and electronics manufacturing. The Type VRS is the preferred workholding solution when mechanical clamps cannot be used — thin parts, delicate surfaces, complex shapes, or when all six faces of the workpiece must be accessible. Suitable for aluminum, steel, copper, brass, glass, plastic, wood, and composite materials.
Grid and gasket Vacuum chuck Video Thumbnail
Grid and gasket Vacuum chuck Video
Specifications:
    • Sealing Cord: Ø 3 mm (12.5 mm pitch) or Ø 5 mm (25 mm pitch)
    • Body Material: High-strength aluminum
    • Surface Finish: Precision ground
    • Flatness: 0.02 mm / 100 mm
    • Parallelism: 0.02 mm / 100 mm
    • Vacuum Supply: Compatible with Braillon VAL (Ref. 30.10) or VP pump (Ref. 30.20) Sold Separately.
    • Included: Air hose connector, end stops
    • Options: Multiple independent zones, alternative air connection position, steel base plate for magnetic chuck mounting, palletizing versions

A = Length · B = Width · C = Height · Both 12.5 mm and 25 mm pitch available for all sizes

ReferenceA Length (mm)B Width (mm)C Height (mm)Weight (kg)
30.01.200100200100301.8
30.01.250150250150303.5
30.01.300150300150304.0
30.01.300200300200304.9
30.01.400200400200307.1
30.01.5002005002003010.0
30.01.6002006002003012.6
30.01.4003004003003013.0
30.01.5003005003003016.0
30.01.6003006003003019.0
30.01.7003007003003825.0
30.01.4004004004003019.0
30.01.6004006004003028.0
30.01.8004008004003838.0
30.01.100040010004003848.0
30.01.5005005005003830.0

Explore our complete range of workholding options on the main Braillon Vacuum Chucks category page.
