APPLICATION GALLERY
Take a look at our application pictures
MILLING APPLICATIONS
A magnetic chuck on your vertical or horizontal mill can be a huge time saver. You will gain the ability to work in true 5 axis form. The tool path of your mill will no longer have to take into account clearance for a vise. You can even use pole extensions to lift the part and have Z access through the part. We take pride in manufacturing many options for our customers that mill different size parts.
![Horizontal mill with magnetic chuck](https://www.braillonusa.com/wp-content/uploads/2022/03/zAPPLI_7-300x225.jpg)
![milling magnetic chucks](https://www.braillonusa.com/wp-content/uploads/2021/04/1-300x200.jpg)
![Large steel block milled on a electropermanent magnetic chuck](https://www.braillonusa.com/wp-content/uploads/2022/03/zAPPLI_91.webp)
![Tombstone Magnetic setup](https://www.braillonusa.com/wp-content/uploads/2022/03/Tombstones-Braillon-225x300.jpg)
![Electro-permanent magnetic chuck type type TM40](https://www.braillonusa.com/wp-content/uploads/2023/02/Electro-permanent-magnetic-chuck-type-type-TM40-300x176.jpg)

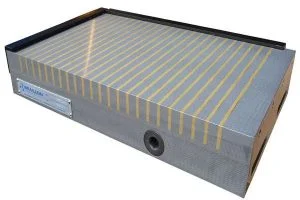

![Permanent magnetic chuck for milling type tf2](https://www.braillonusa.com/wp-content/uploads/2023/02/Permanent-Magnetic-chuck-for-milling-type-tf2-300x200.jpg)

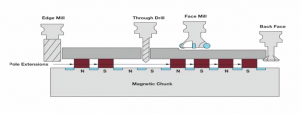

![5 Axis Machining with magnetic chuck](https://www.braillonusa.com/wp-content/uploads/2021/04/Magnetic-Workholding-Examples-1-300x113.png)
![Large Table with magnetic chucks on it](https://www.braillonusa.com/wp-content/uploads/2022/03/zAPPLI_8-300x225.jpg)
Surface grinding APPLICATIONS
A surface grinder without a magnetic chuck is incomplete in many applications. An Electromagnetic, Electro-permanent or even permanent mag chuck are going to allow customers to hold their steel parts during the surface grinding process.
![Magnetic chuck on swivel, Contact,](https://www.braillonusa.com/wp-content/uploads/2021/05/20170510_153113-300x169.jpg)
![Laminated Block](https://www.braillonusa.com/wp-content/uploads/2021/05/Laminated-Block-300x180.jpg)
![Permanent magnetic chuck on sine table](https://www.braillonusa.com/wp-content/uploads/2023/02/braillon-Permanent-magnetic-chuck-on-sine-table-300x172.jpg)

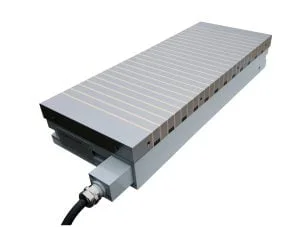

![ICA ELECTROMAGNETIC CHUCK FOR SURFACE GRINDER](https://www.braillonusa.com/wp-content/uploads/2023/02/EPICA-300x227.jpg)
