Electro-Permanent Chuck Control Units — MC20 Controller for Any Brand EPM Chuck

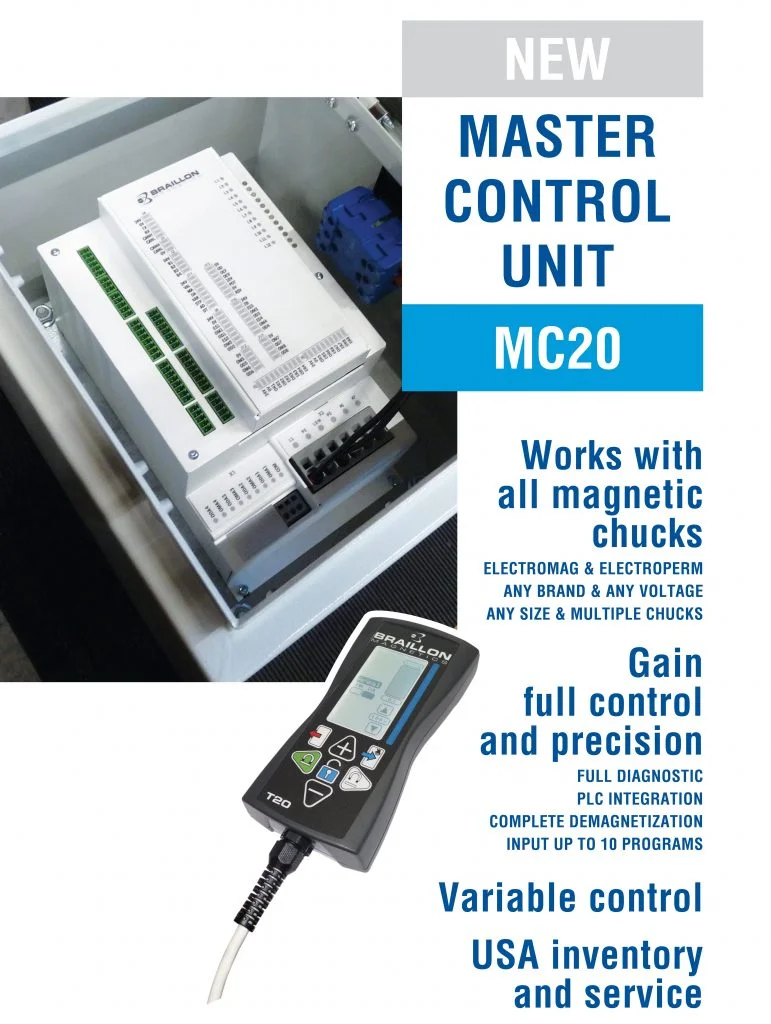

If you have an electro-permanent magnetic (EPM) chuck from any manufacturer, and the control unit has failed or lacks modern features, you do not need to replace the entire chuck. The Braillon MC20 Master Control Unit is a universal, top-of-the-line replacement controller designed specifically to operate electro-permanent magnetic chucks of any brand, size, or voltage.

Upgrading to the MC20 provides your shop with precision variable control, full PLC machine integration, multi-chuck zone programming, and complete demagnetization ( available only for Braillon Magnet chucks and liftings magnets) — all backed by Braillon’s 100+ years of magnetic systems expertise and USA-based support.

ELECTRO-PERMANENT CHUCK CONTROL UNITS - easy form

Electromagnetic chuck CONTROL UNITS, Control Units For Magnetic Chucks

What makes our control unit so special?

  • COMPATIBLE WITH ALL BRANDS
  • MANAGE MULTIPLE MAGNETS AT ONCE
  • TOTAL DEMGNATIZATION OPTION
  • MACHINE INTERFACE
  • OFFSITE REMOTE ASSISTANCE
  • ADJUSTABLE SETTINGS
  • ANY SIZE MAGNETIC

Before Replacing Your Control Unit: A Quick Checklist

Before ordering a replacement controller, we highly recommend checking the following to ensure the issue is actually the controller and not the chuck itself:

  • DID YOU CHECK YOUR MAGNETIC CHUCK RESISTANCE?
  • DID YOU CHECK THE ELECTRICAL INSULATION OF THE MAGNET?
  • DID YOU VERIFY IT IS ELECTRO-PERMANENT AND NOT ELECTROMAGNETIC

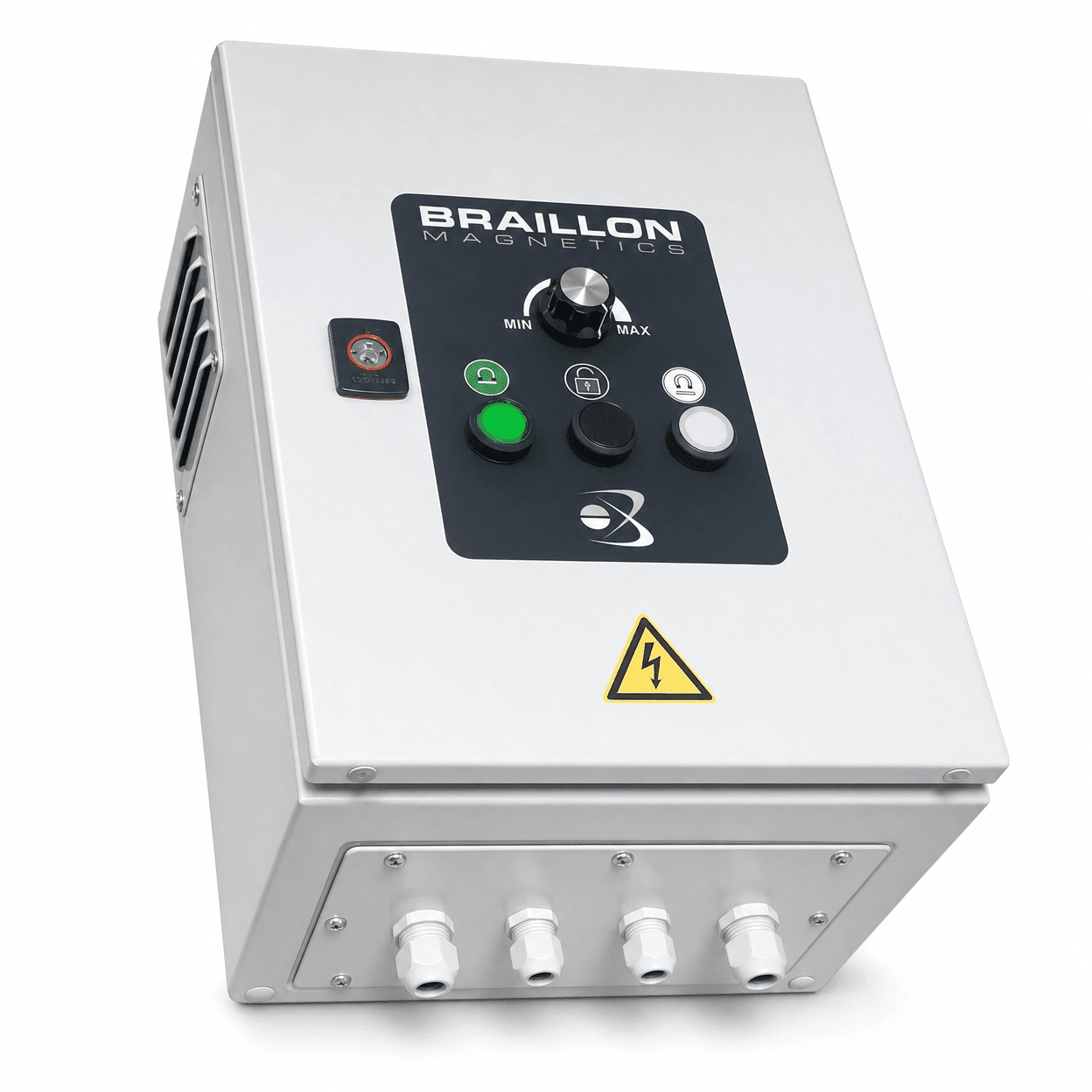

Electromagnetic chuck controller 150W

Check out our electromagnetic controls

Electromagnetic chucks require continuous power and use our iBUET Series Controllers. Electro-permanent chucks only require a pulse of power to switch states.

ELECTRO-PERMANENT MAGNETIC CHUCKS

SEE OUR ELECTRO-PERMANENT CHUCKS FOR MILLING
SEE OUR EPM MILLING CHUCKS

ELECTRO-PERMANENT MAGNETIC CHUCKS

SEE OUR ELECTRO-PERMANENT CHUCKS FOR SURFACE GRINDING
SEE OUR EPM GRINDING CHUCKS

If you have an electropermanent magnetic chuck or lifting magnet of any brand or style, this control unit will work for you. However, if you have an electromagnetic chuck, this control unit will not.

We created an easy form for our customers. The easy form will ask for a few simple pieces of info concerning you shop voltage (AC) and your Magnetic chuck input (DC) voltage. The resistance and amperage of your magnet will be needed as well. With this information, we will be able to provide and program the control unit for your particular magnet.

Yes, it is very important that you make sure your magnet is in good working order before you try a hooking up a new control unit to it. If the electro-permanent magnet is bad, then you will risk damaging the new control unit. So, make sure the resistance and insulation is good prior purchasing a new control.

No difference, they are the same thing. “EPM chuck” is just an other way to say electro- permanent magnet. So to be clear this page is an epm chuck controller.
