ELECTRO-PERMANENT MAGNETIC CHUCK WITH 50mm SQUARE POLES
The TurboMill50 SQ3, also known as the TM50 is an electropermanent magnetic chuck with 50x50mm square poles, used for milling application of medium to large steel parts. You can find this type of magnetic chuck on many CNC machines across America. Engineered with very strong rare earth neodymium magnets. A great option for 5 axis machining as power is only needed when turning the chuck on or off, so no cables to get in the way of the tool path or swivel table.
Applications include:
- MILLING
- MACHINING
- DRILLING
- CONTOURING
- PLANNING
Product Details
Sizes Available: From 12″x 12″up to 38″x 22″
Nominal force : 400 daN per pole
Admissible wear of top plate : 4 mm.
Magnets used: Rare Earth Neodymium
Pole Pitch: 50x50mm
Magnetic Field Height: 10mm
Included with purchase:
– 3, 6 or 10 meter long cable (length to be chosen)
– Long and short side end stops
– Clamps
– 3, 6 or 10 meter long cable (length to be chosen)
– Long and short side end stops
– Clamps
Options available on request:
- CUSTOM TABLE CLAMPING HOLES
- CUSTOM POLE SHOES
- FLEXIBLE TRANSFER BLOCKS
- STATIC TRANSFER BLOCKS
- CONTROL UNITS
- REMOTE CONTROLS
REF# 10.33.50.SQ3
Previous
Next

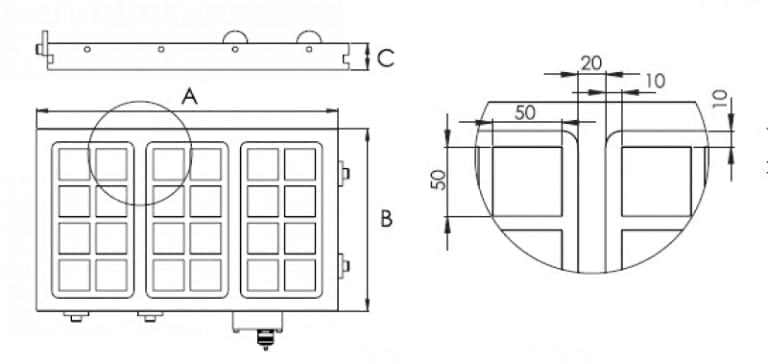

PRODUCT SPEC SHEET
| Product Code | Weight (kg) | Weight (lbs) | A Length | B Width | C Height | D # Poles |
|---|---|---|---|---|---|---|
| 10.33.50.SQ3.320320 | 30.0 | 66.14 | 320 | 320 | 43 | 16 |
| 10.33.50.SQ3.490295 | 44.0 | 97.00 | 490 | 295 | 43 | 24 |
| 10.33.50.SQ3.490420 | 63.0 | 138.89 | 490 | 420 | 43 | 36 |
| 10.33.50.SQ3.490475 | 71.0 | 156.53 | 490 | 475 | 43 | 42 |
| 10.33.50.SQ3.490575 | 86.0 | 189.60 | 490 | 575 | 43 | 48 |
| 10.33.50.SQ3.640295 | 58.0 | 127.87 | 640 | 295 | 43 | 32 |
| 10.33.50.SQ3.640420 | 83.0 | 183.01 | 640 | 420 | 43 | 48 |
| 10.33.50.SQ3.640475 | 93.0 | 205.03 | 640 | 475 | 43 | 56 |
| 10.33.50.SQ3.640575 | 113.0 | 249.12 | 640 | 575 | 43 | 64 |
| 10.33.50.SQ3.795295 | 71.0 | 156.53 | 795 | 295 | 43 | 40 |
| 10.33.50.SQ3.795420 | 102.0 | 224.87 | 795 | 420 | 43 | 60 |
| 10.33.50.SQ3.795475 | 116.0 | 255.74 | 795 | 475 | 43 | 70 |
| 10.33.50.SQ3.795575 | 140.0 | 308.65 | 795 | 575 | 43 | 80 |
| 10.33.50.SQ3.950295 | 95.0 | 209.44 | 950 | 295 | 43 | 48 |
| 10.33.50.SQ3.950420 | 122.0 | 269.00 | 950 | 420 | 43 | 72 |
| 10.33.50.SQ3.950475 | 137.0 | 302.03 | 950 | 475 | 43 | 84 |
| 10.33.50.SQ3.950575 | 168.0 | 370.38 | 950 | 575 | 43 | 96 |
