150 Watt Magnetic chuck control unit. Adjustable force. Full demagnetization cycle, 115Vac/110Vdc

5/5

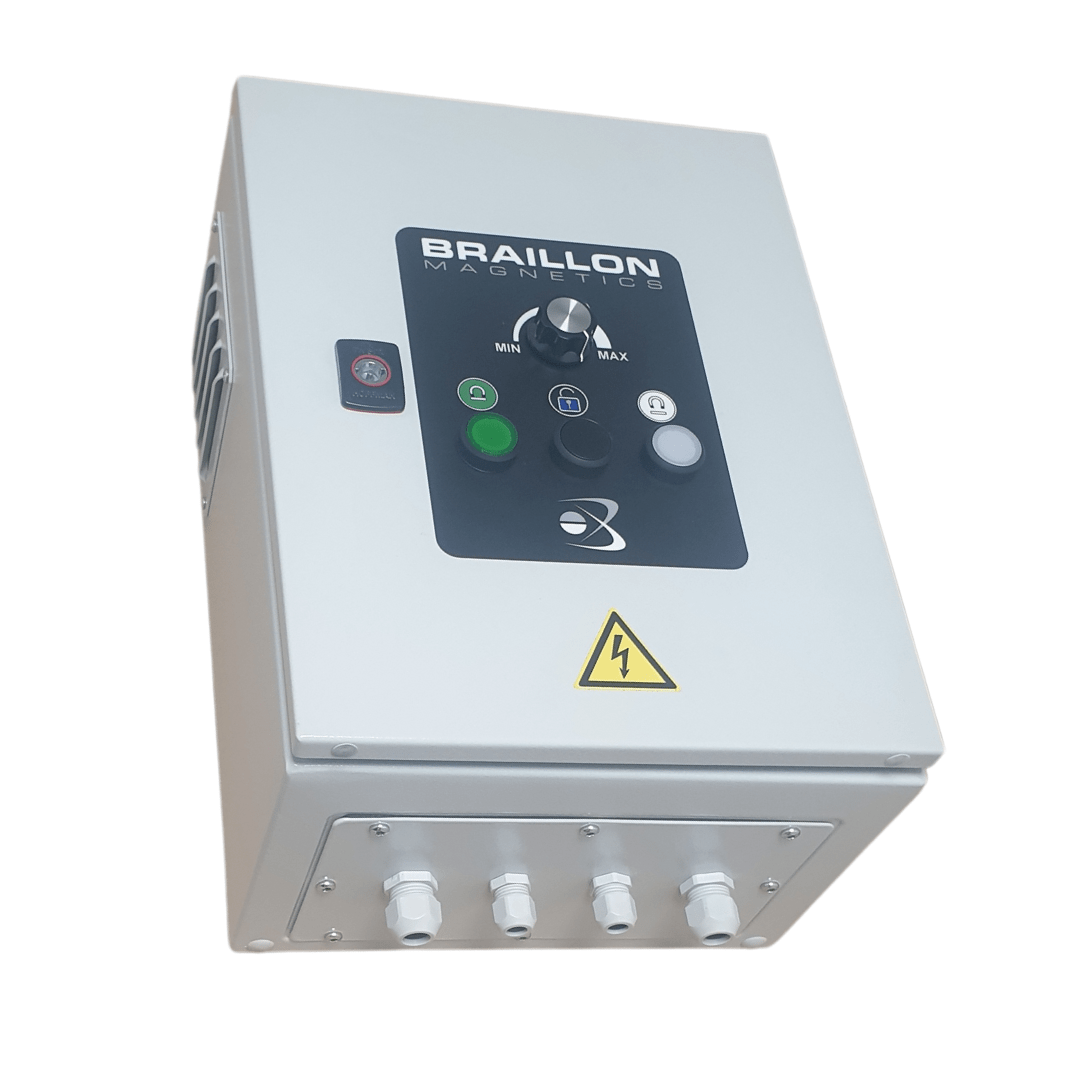

Magnetic chuck control unit, up to 150W.

Adjustable Variable Force. Full demagnetization cycle.

115Vac, for 110Vdc electromagnetic chuck.

$3,200.00

Available on backorder

Description

COMPATIBLE WITH ALL ELECTROMAGNETIC CHUCK BRANDS UP TO 150 Watt

Upgrade any brand of electromagnetic chuck with this 150watt control unit (115Vac, 110Vdc). US based support is always available out of our Chicago office. If you have any questions, just call us at 1- (312-912-1355). If you have different power requirements or are unsure which controller you need, see our full selection of controllers.

GALVANIC ISOLATION TRANSFORMER PROTECTION

Galvanic Isolation Transformer for mag chuck controller

  • Galvanic Isolation . This means the controller is isolated from the client’s electrical network.



  • Independent of the client’s neutral systems (no matter the client’s electrical distribution)



  • Prevents pollution/rejection (for the purist, this is called “Harmonics”) The goal: To reject the pollution /line noise created by surrounding machines (with a lot of electronics, as is the case today) which can interfere with the proper functioning of our 150watt electromagnetic chuck control unit. It also in turn allows us to not pollute the customer’s network. Many machine tools are powered with a transformer for this reason.

INTERGRATED FINE VARIABLE POWER CONTROL

ibuet 150w electromagnetic chuck control unit close up

A heavy duty, well made potentiometer allows for 0Vdc to 110Vdc variable force of your magnetic chuck.

TOTAL DEMAGNETIZATION CYCLE

Braillon Magnetics has been at  it since 1921. We have worked years to come up with the best demagnetization cycle on the market. It is fast and very effective. The demagnetization cycle will remove the magnetism from the part to allow for easy removal of you part from the workholding magnet and leave you with low to no residual magnetism.

MACHINE SAFETY INTERFACE

You will have access to a 24v machine safety interlock. If you which to have PLC integration, please call us, let us know so that we prepare the correct control unit properly.

OFFSITE REMOTE ASSISTANCE

Our new MC 20 control board allows our technicians to make a remote diagnosis and improve the configuration of the magnetic chuck control, if needed. All this is done through a simple USB key.
