Description

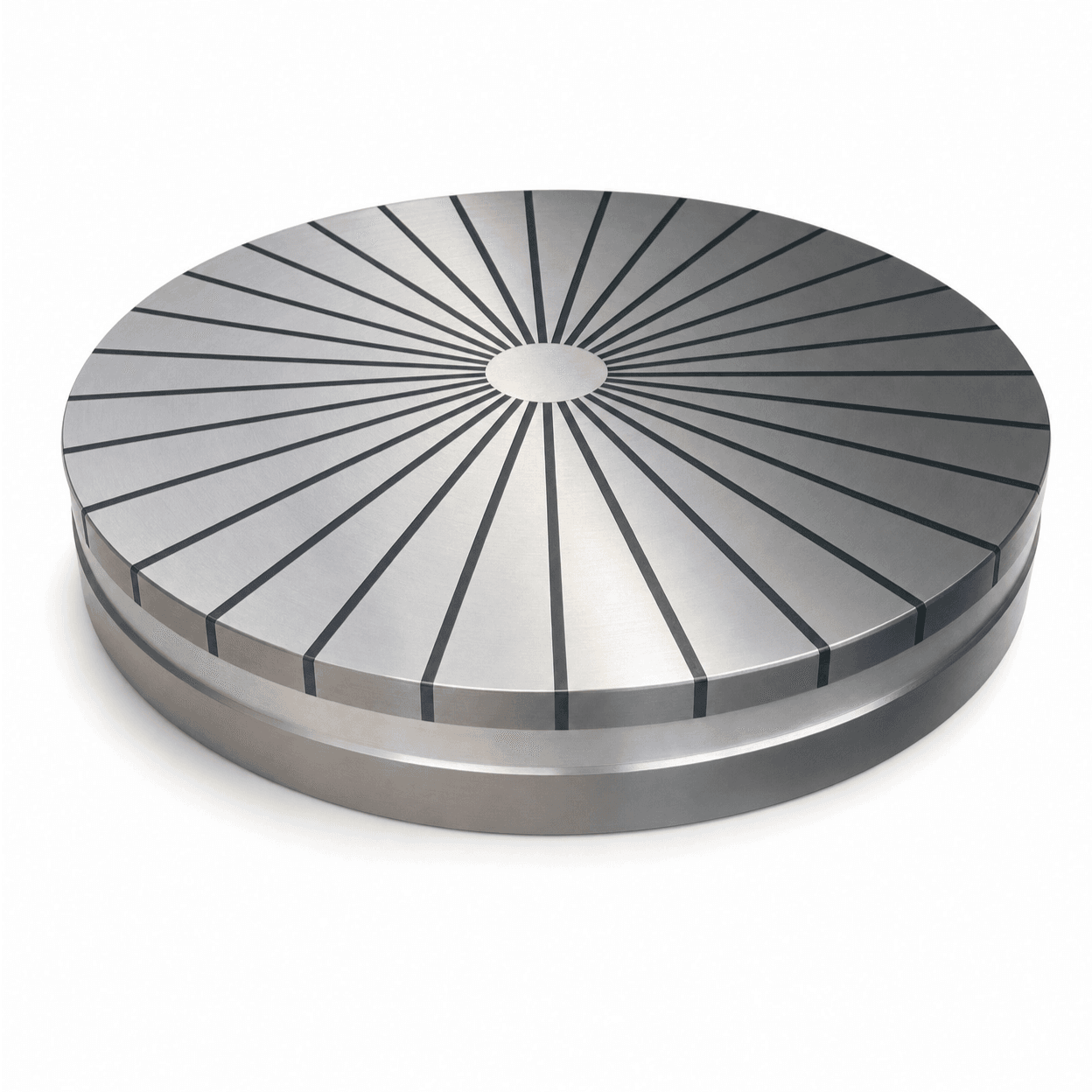

The ERCA is a permanent rotary magnetic chuck with radial poles. This magnetic lathe chuck is made for the true professional. The best round magnetic chuck that uses Alnico permanent magnets. Designed with the precision customer in mind. Perfect for your rotary grinding machine or use as a lathe magnet. ID/OD applications;
- PRECISION GRINDING
- CYLINDRICAL GRINDING
- TURNING
- HARD TURNING
- MEASURING
- MAGNETIC BASE
PRODUCT DETAILS
Sizes Available: From 6″ to 32″ (150mm – 800mm)
Nominal force : 110 N/cm²
Admissible wear of top plate : 5 mm.
Magnets used: Alnico
Options available on request:
- T-slots in each pole
- Through hole in the middle
- Raiser pole shoes
- Auxiliary top plate
- Fitting adaptors
- Morse cone 3 or 4
- Short taper flanges
ERCA MAGNETIC CHUCK TABLE OF DIMMENSIONS
